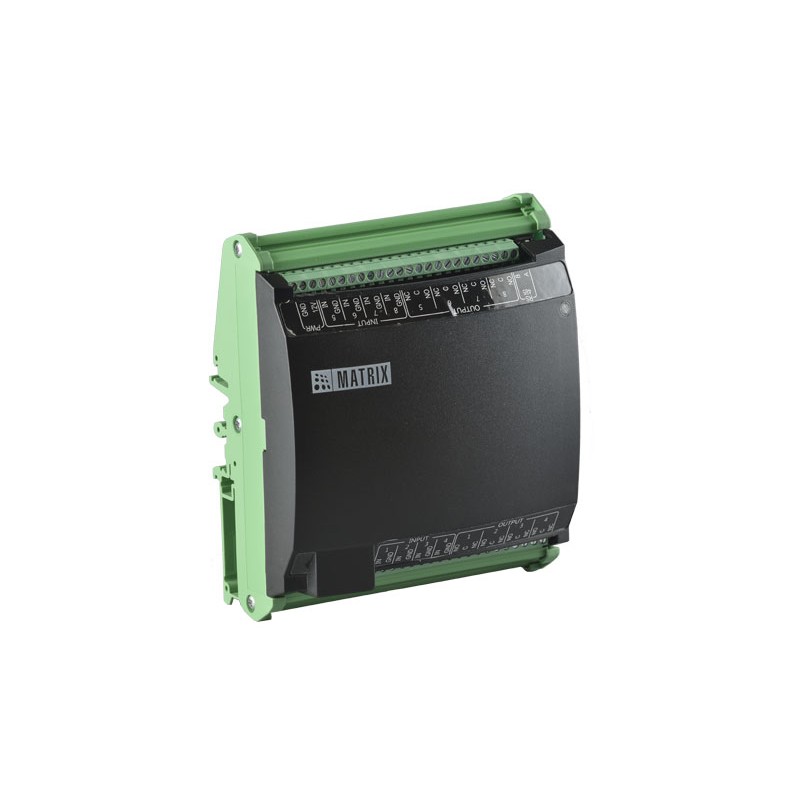

COSEC ARC DC100P
2-3 Days
Click Image for Gallery
OVERVIEW
COSEC ARC DC100P is an intelligent, compact IP panel with PoE for a single or double door. COSEC ARC dramatically simplifies access deployment. COSEC ARC works in two different operational modes – in Standalone Mode with COSEC PANEL or in a Centralized Mode with COSEC CENTRA application server. The state-of-the-art COSEC ARC can control two readers on Wiegand or RS-485, two door locks and other auxiliary devices, making it an ideal solution for any access control installation.
APPLICATIONS
| Access Control |
KEY FEATURES
 | Compact Design
|  | Modular Architecture
|
 | Easy Integration
| ||
INTERFACE DIAGRAM
TECHNICAL SPECIFICATIONS
| General | |
|---|---|
| Readers | Two |
| Door | One/Two |
| Users | 10,000 |
| Event Buffer | 1,00,000 |
| Input Power | PoE or External Power Adapter (12VDC@2A) |
| Communication | Ethernet (with COSEC PANEL or COSEC CENTRA) |
| CPU | 32-bit Microcontroller |
| Flash Memory | 512kB Internal Flash + 4MB External Flash |
| RAM Memory | 128kB SRAM |
| LED | Two (Device Status and Network Status) |
| Reader | |
| Connections | DATA0, DATA1, LED0, LED1, BUZZER, Tamper, Power, GND, RS-485A and RS-485B |
| Power | 12VDC at max. 150mA per Reader |
| Reader Types | Two Reader Ports for Wiegand or Matrix Reader |
| Interface | Wiegand and RS-485 (for Matrix Reader only) |
| Max Distance | 400 meters (on RS-485) and 100meters (on Wiegand) |
| IN/OUT | |
| Exit Switch Port | Yes |
| Door Status Sense | Programmable NO, NC and Supervised |
| Door Lock Relay | Relay SPDT, Form C and Max 5A @ 24VDC |
| AUX-In Port | Yes (Single door)/No (Double door) |
| AUX-Out Port | Yes (Single door)/No (Double door) |
